Iota’s Products

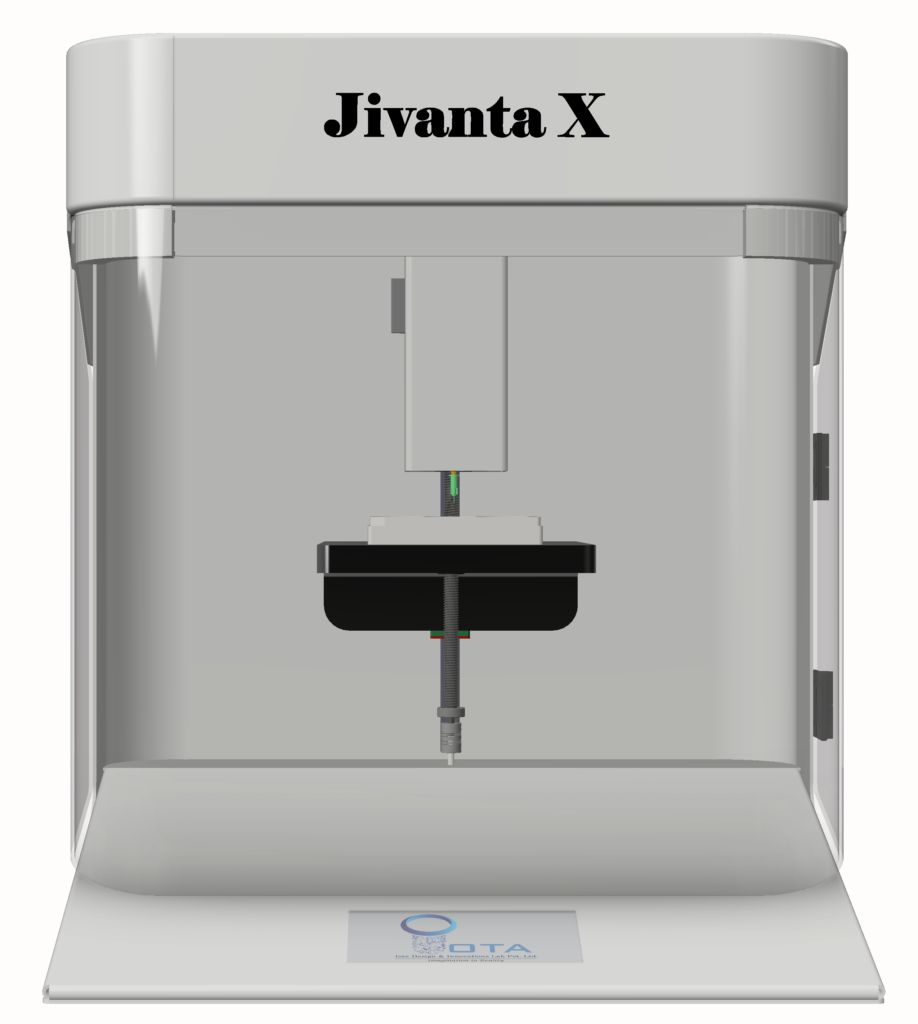

Jivanta X

An innovative Bio- Printer for pharmaceuticals/cosmetic testing, tissue engineering, regenerative medicine, bio-sensor and many more.



Compatible material: Bioinks (Collagen, Gelatin), PLGA, PDMS, Sugar etc.

Features

  1. Modular Print Head: You can just exchange the print head and make it an FDM printer or Bio-printer.
  2. Auto-Bed Levelling
  3. Close/Clean Chamber
  4. Temp-controlled Printhead & Print bed.     Print Head Temperature: 24 – 60°C, Print Bed Temperature: 24 – 120°C
  5. UV Curing: Wavelength 365& 405nm for curing
  6. Quality-Cost efficiency Balance





Specifications:

  • Stepper Motors Resolution= 12.5µm
  • Layer Resolution= 100 µm
  • Nozzle(Needle) Diameter= Up to 26 Gauge
  • Working Dimensions= 150x100x60 (LxWxH) mm
  • Printheads=1
  • Photocuring sources= 405 (365 Optional) nm
  • UV-Sterilization= yes with 275nm
  • Bed Temperature= 100 °C (Max)
  • Product Dimension= 570x560x650 mm3

Features:

HEPA Filter

UV Curing:

                       Wavelength: 365& 405nm for curing

Temp-controlled Printhead & Printbed:

                      Print-head Temperature: 24 – 60°C

                      Print-bed Temperature: 24 – 110°C

Close/Clean Chamber

Quality-Cost efficiency Balance

Consumables:

                      10ml Syringe available in the market

                      Petri dish(90mm)/6,12 Well plate
